H2000 Hydraulic Chute

H2000 Hydraulic Chute

8,854.13 11,067.66
Quantity:
sale
Add To Cart


The H2000 Hydraulic Squeeze chute is an all-purpose squeeze chute that is rated for most animal sizes. The headgate and center squeeze both utilize rack and pinion mechanisms that aid in keeping operator and animal away from moving parts and dangerous linkages.  This unit includes the Neck Extender (not shown).



Notable Features:

  • Rack and pinion hydraulic linkages

  • Left-Hand Controls

  • 110v or 220v Power Options

  • Split Kickpans

  • Split Hydraulic Tailgate

  • Right Side Exit (Side Exit)

  • Easy Adjustable Floor

  • Hydraulic Cylinders are up and tucked away

  • 5 Year warranty on chute (less hydraulics)

Physical Dimensions:

  • Chute Weight: 1611 lbs.

  • Overall Length: 96” (98” with clevis)

  • Overall Height: 85”

  • Widest Point: 53”

Internal Dimensions:

  • Stanchion Height: 64”

  • Tailgate Height: 65.5”

  • Chute Side Height: 60”

Electrical Considerations:

Motor Spec:                  2 HP, 1750 RPM, 110v or 220v, 18 amp110/9 amp 220
Pump Spec:                   2 Stage, 13 GPM
Valve Body:                   3 Spool
System Pressure:         1000 lbs. (release set at factory)
Hydraulics Warranty:  1 Year
Generator Operation requires 8500 watt cold startup

Item Number: 002-55000




All Powder River 2000 Series Chutes Include:



Side Exit.jpg

Side Exit

All our standard chutes carry this important feature. The ability to side exit a cow is paramount for animal safety. Preventing one animal injury will pay for the value of this feature. It is also helpful for practical uses such as sorting.

Split Tailgate.jpg

Split tailgate

A Split Tailgate allows the operator to work from either side of the chute with minimal interference and can be closed from the normal operator position or near the back of the chute. The split tailgate is standard on all chutes except the value series. The value series features a durable drop gate with spring latches.



Hinged Kick Panels.jpg

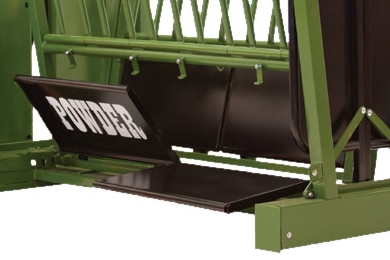

Hinged Kick Panels

Kick panels are available on every chute that Powder River produces. Split Kick pans on our 2000 Series chutes provide quick and easy access to the animals legs or underside. Our easy kick panel latches make for trouble-free operation. Kick panels are also easily removable if needed. All Powder River kick panels are powder coated for durability.

Double Sided Squeeze.jpg

Double Sided Squeeze

Powder River’s Squeeze is superior in the market. Not only does it provide superior leverage for the operator, utilizing a double sided V-Squeeze centers and supports the animal, keeping it calm and reducing stress. The V-Squeeze on Powder River chutes is adjustable for floor width depending on the size of animals your running through the chute.
