Seedstock 1100
Seedstock 1100

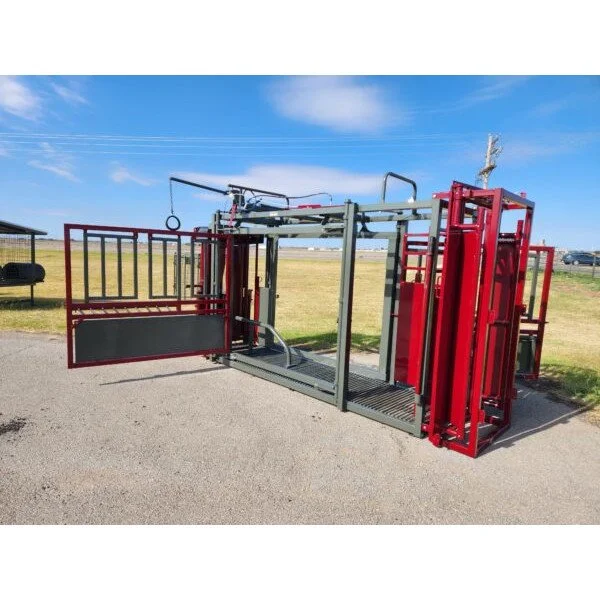

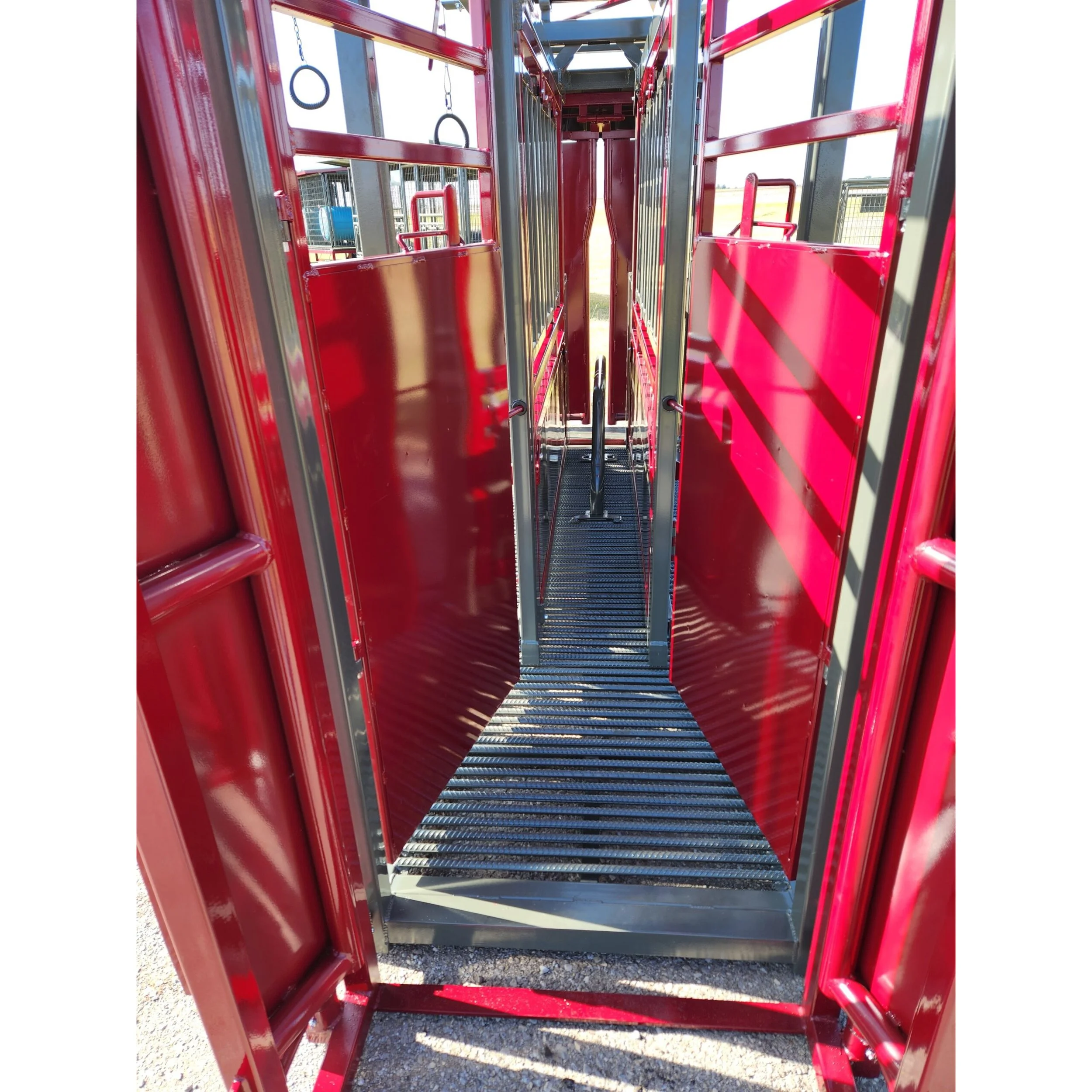

The Seedstock 1100 is a hydraulically assisted manual squeeze chute which increases operator squeeze force with less effort. Every pound of pressure on the pump applies nine pounds of pressure on the animal. The spring-loaded release, resets the chute for the next animal quickly. Featuring a Heavy Duty Hot Roll floor for extended life and easy clean out. Inside chute dimensions operate from 30” to 12” with absolutely no hand adjustments necessary regardless of the animal’s size. Palpation door travels with side squeeze creating a funnel to eliminate small animal turn-around. Branding doors swing out and are removable. Lower access kick panel slides off for access to underside of the animal.
Standard Equipment

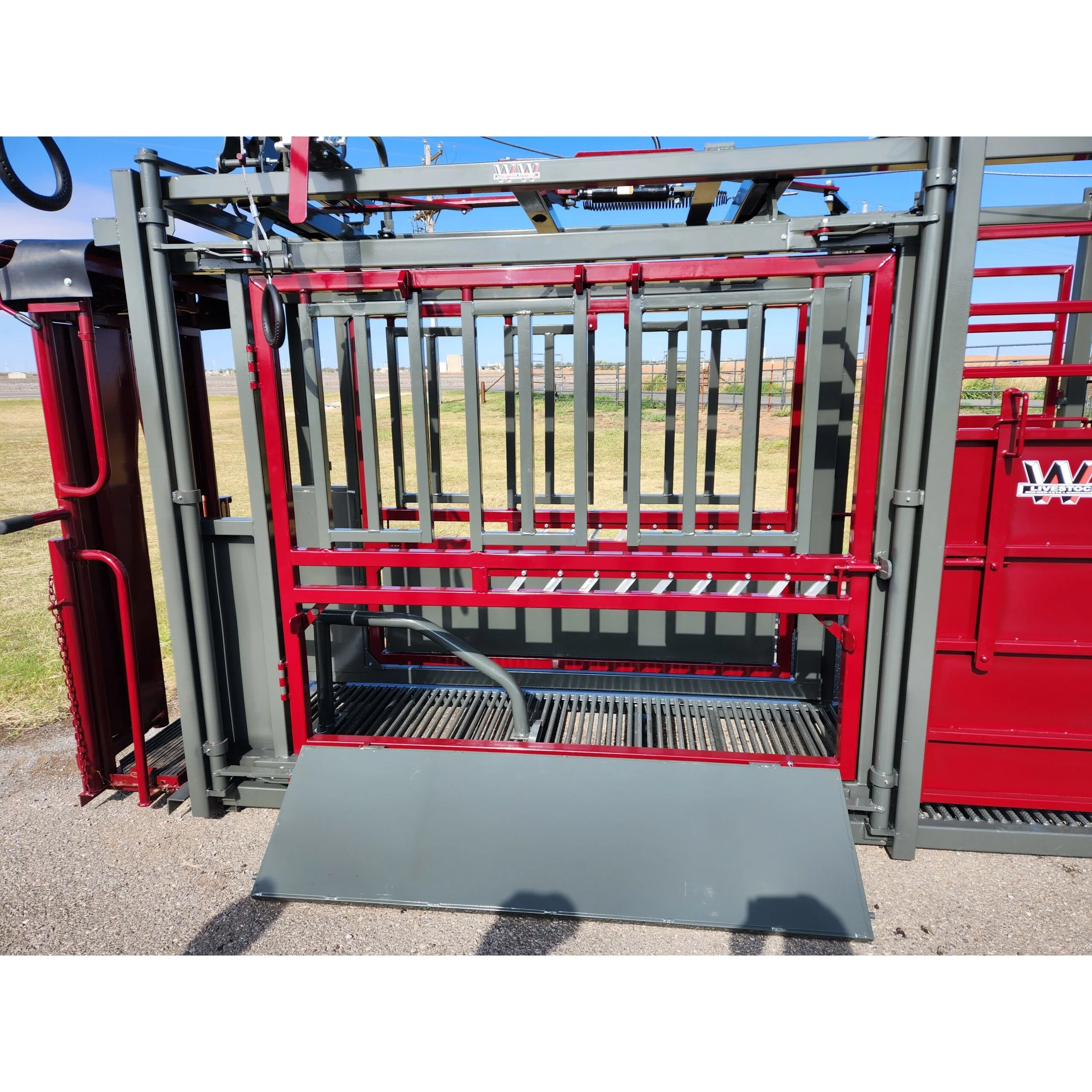

Heavy-duty manual headgate or self-catch headgate
Rear drop gate or bi-fold gate
Palpation cage latch follows squeeze sides
Left and right side doors open for easy access
Double side squeeze
Equal vertical squeeze
No forward or backward movement of squeeze
Fiberglass butt bar
Two removable restraining rails
Removable breast bar
Removable branding windows
Removable lower kick panels
Specs:
Length: Overall 159” Inside 139”
Width: Overall 47” Inside30”
Height: Overall 92” Inside 73”
Optional Equipment
Portable Yoke Trailer
Digital Scale
Blinders for branding windows
