Standard Features That Make the W-W Hydraulic Chute "A Cut Above the Rest"

• All control arms and center squeeze bars are equipped with sealed bearings.

• Fold-down bars are saddle cut for extra strength and feature spring-loaded latches.

• All bearings come equipped with grease zerks for easy maintenance.

• All chutes feature an emergency side exit as standard equipment.

• The side-drop door latch is located in the center of the drop door and simultaneously activates latches on both ends.

• The pressure gauge on all units reduces the possibility of injury to animals.

• A super quiet hydraulic system greatly reduces the possibility of "Noise Panic" by animals being worked.

Specifications

• "Super Sized" materials include a 3-1/2" heavy wall frame and 2-1/2" heavy wall sides.

• UHMW bushings at gate bottoms.

• Hydraulic bottom adjustment, headgate extensions, double wear plates on all gates.

• The stoutest chute in the industry is explicitly designed to withstand abuse sustained from feedlot processing and re-implanting.

• Length: 101"

• Width: 83"

• Height: 96"

• Dropbars: 25"

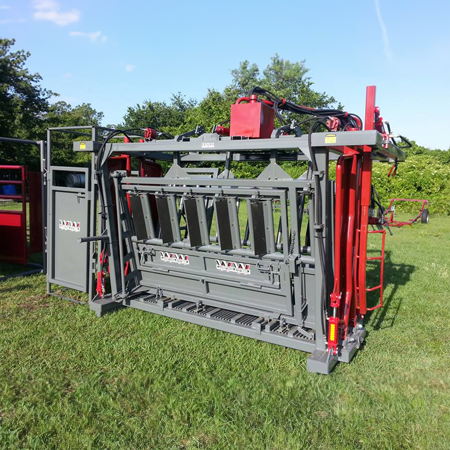

*Pictured with Palpation Cage (Not Included)
