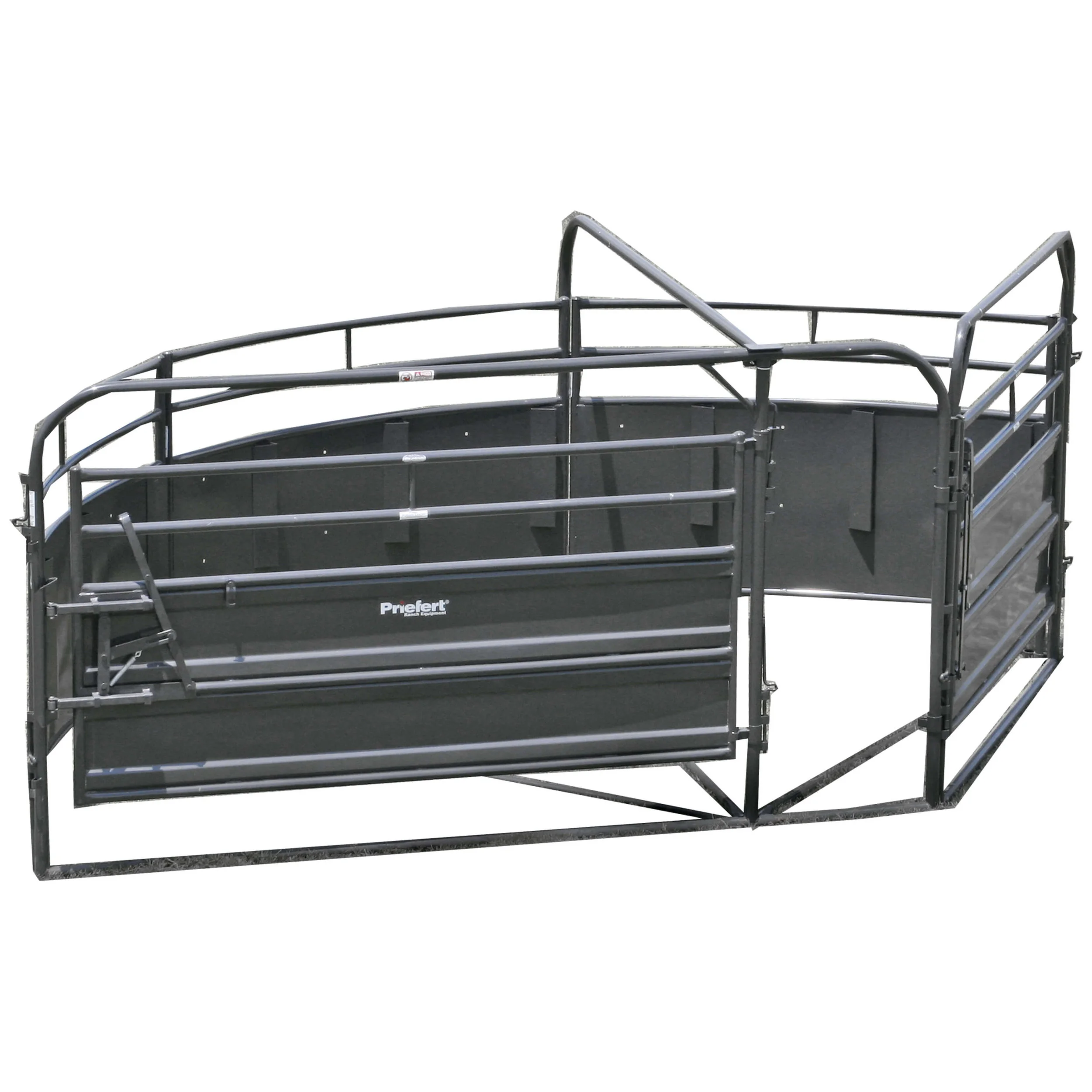

135 Degree Solid Sweep w/8' Load Out Gate - SS-15

135 Degree Solid Sweep w/8' Load Out Gate - SS-15

4,493.00

This 135 degree “Revolution” sweep is designed from our Sheeted Sweep components with an 8’ bow gate for easy load out before entering the alley.

Quantity:
Add To Cart

SS-15 135 Degree Solid Sweep w/8' Sorting Gate

This heavy duty, completely reversible crowding system includes a 135 degree sweep and is great for permanent operations. By pivoting our 10’ wide sweeping bow gate at the inside corner of the alley entrance, livestock flow is improved by eliminating corners that are found in other sweep systems. The SS-15 also includes an 8’ sorting gate that gives you the option to sort or load out cattle directly from the sweep. This system is constructed with durability in mind to ensure that it can handle the rankest cattle. The Architectural Grade Powder Coat Finish helps the product to resist rust, scratches, and fading to add years of life to your investment.


Features

  • The SS-15 is great for permanent operations and has several unique, practical features not found in most other solid sweeps.
  • 135 degree sweep is easily reversible so that cattle can be loaded from either side of the working alley, and can be expanded into a complete corral system with the purchase of additional pieces.
  • The Sheeted Bow Gate includes the sweeping gate, an alley frame that serves as the initial opening into the crowding alley, and a spring loaded Double Piston Lever Latch.
  • By pivoting our 10’ wide sweeping bow gate at the inside corner of the alley entrance, livestock flow is improved by eliminating corners that are found in other sweep systems.



  • Our Sheeted Curve Panels are specially designed to create our sweep tub and each includes three vertical blocking points that allow the sweep gate to latch. These stops help prevent cattle from pushing the sweep gate back when being crowded.
  • The 8’ Sheeted Sweep Bow Gate serves as a sorting gate, giving you the option to sort or load out cattle straight from the sweep, without crowding them down the alley.
  • Architectural Grade Powder Coat Finish with UV inhibitors add years of life to your investment by helping the product resist rust, scratches and fading.

Specifications

  • SS-15 includes: 1- Sheeted Bow Gate, 3- Sheeted Curve Panels, 3- Radius Bars, 1- Radius Bow, 1- 8’ Sheeted Sweep Bow Gate



  • Architectural Grade Powder Coat Finish
  • Color: Grey
